Product
NEWS
Active
High Sensitivity Ambient Light Sensor
Features
− Support Smallest Lens Hole Design
− Closest Edge Layout
− MSL3
General Description
The APS5201E is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OMDFN-5, 2.95 x 1.5 x 1.4mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5201E digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
Features
- Optical Package: OMDFN-5
− Support Smallest Lens Hole Design
− Closest Edge Layout
− MSL3
- Operation 1.7V~3.6V
- Immunity On Fluorescent Light Flicker
- I2C Bus Protocol Interface
- Supports Interruption Feature (INT)
- Software Shutdown Mode Control
- Lowest Power
General Description
The APS5201E is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OMDFN-5, 2.95 x 1.5 x 1.4mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5201E digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
NEWS
Active
High Sensitivity Ambient Light Sensor
Features
− Support Smallest Lens Hole Design
− Closest Edge Layout
− MSL1
General Description
The APS5202 is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OTFNTM-8, 1.79 x 1.4 x 0.7mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5202 digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
Features
- Optical Package: OTFNTM-8
− Support Smallest Lens Hole Design
− Closest Edge Layout
− MSL1
- Operation 1.7V~3.6V
- Immunity On Fluorescent Light Flicker
- I2C Bus Protocol Interface
- Supports Interruption Feature (INT)
- Software Shutdown Mode Control
- Lowest Power
General Description
The APS5202 is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OTFNTM-8, 1.79 x 1.4 x 0.7mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5202 digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
NEWS
Active
Precision Color Sensor
Features
- Support Smallest Lens Hole Design
- Closest Edge Layout
- MSL1
- Software Shutdown Mode Control
General Description
The APS5602 is an incorporated Color sensor that provides best spectral sensitivity used to closer human eye measurements with very low power consumption in a small OTFNTM-8, 1.79 x 1.4 x 0.7mm optical package. The optical-based sensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated Advance 0.18µm CMOS process. The APS5602 digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1µA typical.
Features
- Optical Package: OTFNTM-8
- Support Smallest Lens Hole Design
- Closest Edge Layout
- MSL1
- Operation 1.7V~3.6V
- Immunity On Fluorescent Light Flicker
- I2C Bus Protocol Interface
- Software Shutdown Mode Control
- Lowest Power
General Description
The APS5602 is an incorporated Color sensor that provides best spectral sensitivity used to closer human eye measurements with very low power consumption in a small OTFNTM-8, 1.79 x 1.4 x 0.7mm optical package. The optical-based sensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated Advance 0.18µm CMOS process. The APS5602 digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1µA typical.
NEWS
Active
High Efficiency Output 2/3/4A, 2.2MHz Buck Converter
Features
General Description
APW7411/2/3 series is a high-frequency synchronous buck converter with integrated 25mΩ high side and 25mΩ low side power MOSFET. The APW7411/2/3 series design with a COT control scheme, can convert wide input voltage of 2.5V to 6V to the output voltage adjustable from 0.6V to VIN to provide excellent output voltage regulation. The APW7411/2/3 is equipped with an automatic PFM/ PWM mode operation. At light load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM mode. The device also equipped with Power-on-reset, soft-start, enable/disable and whole protections (over-voltage, under-voltage, over-temperature and current-limit) into a single package. This device, available VTDFN1.5x1.5-6 and, provides a very compact system solution external components and PCB area.
Features
- Wide Input Voltage from 2.5V to 6.0V
- 0.6V to VIN Adjustable Output Voltage
- Up to 90% Efficiency
- 20uA Operating Quiescent Current
- 100% Duty Cycle for Lowest Dropout
- Output Discharge Function
- 2.2MHz Switching Frequency
- Power Good Output
- PWM/PFM Auto Switch
- Thermal Shutdown Protection
- Hiccup Short-Circuit Protection
General Description
APW7411/2/3 series is a high-frequency synchronous buck converter with integrated 25mΩ high side and 25mΩ low side power MOSFET. The APW7411/2/3 series design with a COT control scheme, can convert wide input voltage of 2.5V to 6V to the output voltage adjustable from 0.6V to VIN to provide excellent output voltage regulation. The APW7411/2/3 is equipped with an automatic PFM/ PWM mode operation. At light load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM mode. The device also equipped with Power-on-reset, soft-start, enable/disable and whole protections (over-voltage, under-voltage, over-temperature and current-limit) into a single package. This device, available VTDFN1.5x1.5-6 and, provides a very compact system solution external components and PCB area.
NEWS
Active
0.6A, 5V Input, Low IQ Buck Converter
Features
General Description
The APW7582 is a synchronous buck converter adopting constant on time control mode. Due to increasing the oscillation to high frequency, the mounting area including peripheral components can be reduced. APW7582 also has low switching quiescent current to improve efficiency and battery-powered equipment using time. The APW7582 is equipped with Power-on-reset, internal soft start and over-current protection, over-temperature into a single low cost WLCSP package.
Features
- Input Voltage Range: 2.6V to 5.5V
- Low Switching Quiescent Current
- 0.6A Output Current
- Constant on Time Mode Operation
- 3MHz Switching Frequency
- Power-On-Reset Detection on VIN
- Integrated Soft Start Time
- Over-Temperature Protection
- Over-Current Protection
- Tiny WLCSP 0.90x0.74-5, H=0.33mm Package
General Description
The APW7582 is a synchronous buck converter adopting constant on time control mode. Due to increasing the oscillation to high frequency, the mounting area including peripheral components can be reduced. APW7582 also has low switching quiescent current to improve efficiency and battery-powered equipment using time. The APW7582 is equipped with Power-on-reset, internal soft start and over-current protection, over-temperature into a single low cost WLCSP package.
HOT
Active
96 Channel LED Controller for LCD Backlight
Features
- LED Open Detection
- Temperature Shutdown detection
- UVLO
General Description
The APE5035 are integrates Mosfet and 96 channel LED controller for LCD backlight. It’s high accurate LED current 2% (20mA LED current) and wide input voltage range. The APE5035 has 96 Channel flexible PWM generators and independent 14 bits PWM brightness were control LED current for every channel. In addition; It's has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5035 own LED current modulation method including PWM mode and DC mode. When applications have flicker frequency issue and then can using the DC mode method eliminate flicker frequency problem. The APE5035 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. As the same time; the device using programmable via SPI interface. The APE5035 owns HDR mode for modulation LED current. It’s build-in protection for safety; include LED short, LED Open, temperature shutdown protection and UVLO. The APE5035 is available in QFN12x12-120 packages.
Features
- Wide range input is 4.5V to 24V
- High Accurate LED Current 2% Typ. (ILED=20mA)
- LED current modulation method: PWM and DC mode
- 96 Channel flexible PWM generators and independent for 14 Bits PWM Brightness
- Synchronization with TV Frame – VSYNC / HSYNC / Digital PLL Integrated
- Digital Configurable DC/DC Feedback
- Protection For Safety Features
- LED Open Detection
- Temperature Shutdown detection
- UVLO
- PWM and DC Dimming Via SPI Interface
- HDR mode for LED current modulation
- Available In QFN12x12-120 Package
- One global high accurate 10 big DAC which sets the LED current
General Description
The APE5035 are integrates Mosfet and 96 channel LED controller for LCD backlight. It’s high accurate LED current 2% (20mA LED current) and wide input voltage range. The APE5035 has 96 Channel flexible PWM generators and independent 14 bits PWM brightness were control LED current for every channel. In addition; It's has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5035 own LED current modulation method including PWM mode and DC mode. When applications have flicker frequency issue and then can using the DC mode method eliminate flicker frequency problem. The APE5035 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. As the same time; the device using programmable via SPI interface. The APE5035 owns HDR mode for modulation LED current. It’s build-in protection for safety; include LED short, LED Open, temperature shutdown protection and UVLO. The APE5035 is available in QFN12x12-120 packages.
HOT
Active
3-CH Buck Converter, 3-18V Input Voltage, Tiny Package
Features
- Channel 2 from 3V to 18V
- N-CH MOSFET (90mΩ) for CH2/3 High Side
- N-CH MOSFET (45mΩ) for CH1 Low Side
- N-CH MOSFET (50mΩ) for CH2/3 Low Side
General Description
The APW9304H is a three-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2.5A continuous current capability for the other channel and 1.5A continuous current capability for the other one channel. Although the switching frequency of the APW9304H is fixed at 2.1MHz, it can also change the switching frequency via the EN/SYNC pin. The APW9304H also provides a 120-degree phase shifting technique and Spread Spectrum option to minimize the noise for reducing EMI. The output voltage of each channel can be adjusted using an external resistor divider. Other features include VIN OVP, VOUT OVP, UVP, Current Limit and OTP. The internal switching frequency is set at 2.1MHz. Other features of the part include VIN OVP, OVP, UVP, Current Limit and OTP. The APW9304H is available in a TQFN 4x4-20D wettable flanks package with small size and excellent thermal capacity.
Features
- Wide input voltage range:
- Channel 2 from 3V to 18V
- 3A/2.5A/1.5A Output Current on Channel 1/2/3
- Typical 0.6V ±1% Internal Reference Voltage
- Sync Pin Allows Synchronization to an External Clock from 1.8MHz to 2.4MHz
- Optimized Upper and Lower MOSFETs RDS_on for max Efficiency:
- N-CH MOSFET (90mΩ) for CH2/3 High Side
- N-CH MOSFET (45mΩ) for CH1 Low Side
- N-CH MOSFET (50mΩ) for CH2/3 Low Side
- Built in OVP, UVP, Current Limit, VIN OVP and OTP
- Low Cost TQFN 4x4-20D Wettable Flanks Package
- High Performance or Low Cost Configuration, Auto Mode or FPWM can be set by MODE PIN
- Spread Spectrum Option and Power On Sequence can be configured by SEQ/SSP PIN
General Description
The APW9304H is a three-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2.5A continuous current capability for the other channel and 1.5A continuous current capability for the other one channel. Although the switching frequency of the APW9304H is fixed at 2.1MHz, it can also change the switching frequency via the EN/SYNC pin. The APW9304H also provides a 120-degree phase shifting technique and Spread Spectrum option to minimize the noise for reducing EMI. The output voltage of each channel can be adjusted using an external resistor divider. Other features include VIN OVP, VOUT OVP, UVP, Current Limit and OTP. The internal switching frequency is set at 2.1MHz. Other features of the part include VIN OVP, OVP, UVP, Current Limit and OTP. The APW9304H is available in a TQFN 4x4-20D wettable flanks package with small size and excellent thermal capacity.
HOT
Active
The PMIC Features 7 Buck Converters, 6 LDOs, 2 LSs, and Flexible System Settings via I2C and MTP
Features
Charger
- BUCK2: 1V ~ 3.4V, 10mV Step, 2A
- BUCK3: 0.45V ~ 1.275V, 3.75mV Step, 6A
- BUCK4: 0.6V ~ 1.54V, 5mV Step, 3A
- BUCK5: 0.45V ~ 1.275V, 3.75mV Step, 3A
- BUCK6: 1V ~ 3.4V, 10mV Step, 2A
- BUCK7: 1V ~ 3.4V, 10mV Step, 2A
- LDO2: 1V ~ 3.4V, 50mV Step, 300mA
- LDO3: 1V ~ 3.4V, 50mV Step, 300mA
- LDO4: 0.6V ~ 1.23V, 10mV Step, 200mA
- LDO5: 1V ~ 3.4V, 50mV Step, 150mA
- LDO6: 0.6V ~ 1.23V, 10mV Step, 300mA
General Description
The APW7720 is a Power Management IC (PMIC) designed to provide complete power management solution for Surveillance Cam, IP Cam and Video Conference-Call applications. It integrates a PWM power stage and well-designed control circuitry to minimize the need for external components, thereby simplifying layout in constrained PCB areas. This device features 7 adjustable output voltage buck converters, 6 adjustable output voltage low-noise LDOs, and 2 sets of built-in logic control signal outputs selectable at 1.8V or 3.3V, all of which can be configured via I2C. The APW7720 features protection functions against over current, output over/under voltage, VSYS over voltage and over temperature to prevent catastrophic failure. Fault events also cause a state change on the PGOOD and /INT output pins, which is helpful for interrupt control or debugging. Additionally, it integrates two Under-Voltage Lockout (UVLO) features to monitor the voltages of VSYS and VINLDO1, thereby preventing improper operation during power-up and power-down. An I2C interface is provided in this device for the system designer to customize settings or presets using Multi-Time Programmable (MTP) features, including power-up/down sequence, output voltage, ramp-up/down time, power-good delay time, watchdog timer, PWM switching frequency, forced PWM mode or automatic PFM/PWM mode, output discharge mode or ramp-down mode, and latch off mode or auto-reboot mode. These customizable MTP settings give system designers the flexibility to optimize performance for various use cases, ensuring efficient and reliable operation. The APW7720 is halogen and lead free device, compliant with RoHS, available in TQFN6x6-52B package.
Features
Charger
- 3.5V to 5.5V Operating Input Range
- Built-in UVLO, OVP for Main Input Voltage
- Built-in 7 High-Efficiency Step-Down Converters
- BUCK2: 1V ~ 3.4V, 10mV Step, 2A
- BUCK3: 0.45V ~ 1.275V, 3.75mV Step, 6A
- BUCK4: 0.6V ~ 1.54V, 5mV Step, 3A
- BUCK5: 0.45V ~ 1.275V, 3.75mV Step, 3A
- BUCK6: 1V ~ 3.4V, 10mV Step, 2A
- BUCK7: 1V ~ 3.4V, 10mV Step, 2A
- Configurable Dual Phase or Single Phase Regulator for BUCK1/BUCK3
- Configurable PWM Switching Frequency from 400kHz to 2.5MHz
- Programmable Automatic PFM/PWM Mode, Forced PWM Mode
- Adjustable Ramp-Up Time and Ramp-Down Time for BUCK1 ~ BUCK7
- Built-in RTC Dedicated LDO and 5 Low-Noise LDOs
- LDO2: 1V ~ 3.4V, 50mV Step, 300mA
- LDO3: 1V ~ 3.4V, 50mV Step, 300mA
- LDO4: 0.6V ~ 1.23V, 10mV Step, 200mA
- LDO5: 1V ~ 3.4V, 50mV Step, 150mA
- LDO6: 0.6V ~ 1.23V, 10mV Step, 300mA
- Configurable LDO2/3 output 1.8V/3.3V by LDO2/3_SEL Pin
- Built-in Dual Sets of Logic Control Signal Outputs, Selectable at 1.8V or 3.3V
- Built-in Double Thermal Protection with Temperature Alarm and Thermal Shutdown
- Built-in Output Over Voltage Protection (OVP), Output Under Voltage Protection (UVP), Current Limit
- Built-in Interrupt Control and Reporting by /INT Pin
- Built-in PGOOD to Indicate the Power Status of All VRs
- I2C Bus and User Programmable MTP
- Programmable Power Sequence Control for All Channels via I2C
- Built-in Watchdog Timer, Programmable via I2C
- Supports Self-Refresh Mode via Off Mode Function
- Available in TQFN6x6-52B Package
General Description
The APW7720 is a Power Management IC (PMIC) designed to provide complete power management solution for Surveillance Cam, IP Cam and Video Conference-Call applications. It integrates a PWM power stage and well-designed control circuitry to minimize the need for external components, thereby simplifying layout in constrained PCB areas. This device features 7 adjustable output voltage buck converters, 6 adjustable output voltage low-noise LDOs, and 2 sets of built-in logic control signal outputs selectable at 1.8V or 3.3V, all of which can be configured via I2C. The APW7720 features protection functions against over current, output over/under voltage, VSYS over voltage and over temperature to prevent catastrophic failure. Fault events also cause a state change on the PGOOD and /INT output pins, which is helpful for interrupt control or debugging. Additionally, it integrates two Under-Voltage Lockout (UVLO) features to monitor the voltages of VSYS and VINLDO1, thereby preventing improper operation during power-up and power-down. An I2C interface is provided in this device for the system designer to customize settings or presets using Multi-Time Programmable (MTP) features, including power-up/down sequence, output voltage, ramp-up/down time, power-good delay time, watchdog timer, PWM switching frequency, forced PWM mode or automatic PFM/PWM mode, output discharge mode or ramp-down mode, and latch off mode or auto-reboot mode. These customizable MTP settings give system designers the flexibility to optimize performance for various use cases, ensuring efficient and reliable operation. The APW7720 is halogen and lead free device, compliant with RoHS, available in TQFN6x6-52B package.
Active
Dual Channel Synchronous Buck PWM Controller
Features
- Discontinuous Conduction Mode in Light Load to Increase Efficiency (VEN=2V)
- Sence External RSENSE (option 2)
General Description
The APW7391 is a dual channel voltage mode, synchronous PWM controller which drives dual N-channel MOSFETs. The device integrates monitoring and protection functions into a single package, provides two controlled power output with under-voltage and overcurrent protections. The APW7391 provides excellent regulation for output load variation. The internal 1.0V temperature-compensated reference voltage provides high accuracy of 0.8% over line and load regulation. The PWM switching frequency is adjustable from 50KHz to 350KHz. The APW7391 has been equipped with excellent protection functions: POR, IMON, OCP, SCP, UVP, OVP OTP. The Power-On-Reset (POR) circuit can monitor the VCC input voltage to make sure the supply voltage is valid. The APW7391 adopts either the external power inductor’s DCR or an external accurate sense resistor to sense the output current. The output current information is reported at IMON pin whose output voltage is proportional to output current. During the PWM switching, the APW7391 has OCP and SCP protections. When the load current exceeds the OCP or SCP threshold, the APW7391 shuts off its PWM switcher to prevent catastrophic failure caused by abnormal load or short-circuit. The APW7391 senses its FB pin for output UVP and OVP protection, which is 50% and 120% of reference voltage respectively. When the UVP or OVP occurs, the APW7391 latches off the PWM switcher. APW7391 has over temperature protection. When the die temperature is above 150°C, the APW7391 ceases PWM operation and recover normal operation when the die temperature drops by 40°C. The APW7391 is available in SSOP-24 and SSOP-24P packages, which is compliant with RoHS.
Features
- Single 12V Power Supply Required
- Excellent Output Voltage Regulation
- Simple Single Loop Control Design
- Programmable Frequency Range from 50kHz ~ 350kHz
- CCM/DCM Operation Selectable by EN Pin
- Discontinuous Conduction Mode in Light Load to Increase Efficiency (VEN=2V)
- Output Current Monitor (IMON pin)
- Integrated Soft-Start and Soft-Off
- Support Pre-Biased Power-On
- Output Power Line Compensation
- Phase Shift 180o
- Integrated Boot-Strap Diode
- Over-Current and Short-Circuit Protection
- Sence External RSENSE (option 2)
- 120% Over-Voltage Protection
- 50% Under-Voltage Protection
- Over-Temperature Protection
- Available in SSOP-24 and SSOP-24P Packages
General Description
The APW7391 is a dual channel voltage mode, synchronous PWM controller which drives dual N-channel MOSFETs. The device integrates monitoring and protection functions into a single package, provides two controlled power output with under-voltage and overcurrent protections. The APW7391 provides excellent regulation for output load variation. The internal 1.0V temperature-compensated reference voltage provides high accuracy of 0.8% over line and load regulation. The PWM switching frequency is adjustable from 50KHz to 350KHz. The APW7391 has been equipped with excellent protection functions: POR, IMON, OCP, SCP, UVP, OVP OTP. The Power-On-Reset (POR) circuit can monitor the VCC input voltage to make sure the supply voltage is valid. The APW7391 adopts either the external power inductor’s DCR or an external accurate sense resistor to sense the output current. The output current information is reported at IMON pin whose output voltage is proportional to output current. During the PWM switching, the APW7391 has OCP and SCP protections. When the load current exceeds the OCP or SCP threshold, the APW7391 shuts off its PWM switcher to prevent catastrophic failure caused by abnormal load or short-circuit. The APW7391 senses its FB pin for output UVP and OVP protection, which is 50% and 120% of reference voltage respectively. When the UVP or OVP occurs, the APW7391 latches off the PWM switcher. APW7391 has over temperature protection. When the die temperature is above 150°C, the APW7391 ceases PWM operation and recover normal operation when the die temperature drops by 40°C. The APW7391 is available in SSOP-24 and SSOP-24P packages, which is compliant with RoHS.
Active
5V/0.3A, Ultra Low Iq Buck Converter
Features
- Adjustable Output Voltage Ramp Slew Rate
General Description
APW7564 is a high-frequency synchronous buck converter with I2C Interface. The APW7564, design with a COT control scheme, can convert wide input voltage of 2.7V to 5.5V to the output voltage adjustable from 0.5V to 1.13V by I2C to provide an efficient, flexible DC/DC solution. The APW7564 is equipped with an automatic PFM/PWM mode operation. At light load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM mode. The APW7564 is also equipped with Power-on-reset, Soft start, Enable/Shutdown and whole protections (under-voltage, current-limit and over-temperature) into a tiny package. This device, available WLCSP 0.8x1.14-6 package and provides a very compact system solution external components and PCB area.
Features
- Wide Input Voltage from 2.7V to 5.5V
- 3uA Low Quiescent Current at switching state
- 2% Output Voltage Accuracy
- Output Discharge Function
- 1.5MHz Switching Frequency
- Over Temperature Protection
- Hiccup Short-Circuit Protection
- I2C Interface
- Adjustable Output Voltage Ramp Slew Rate
- Tiny WLCSP 0.8x1.14-6 Package
General Description
APW7564 is a high-frequency synchronous buck converter with I2C Interface. The APW7564, design with a COT control scheme, can convert wide input voltage of 2.7V to 5.5V to the output voltage adjustable from 0.5V to 1.13V by I2C to provide an efficient, flexible DC/DC solution. The APW7564 is equipped with an automatic PFM/PWM mode operation. At light load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM mode. The APW7564 is also equipped with Power-on-reset, Soft start, Enable/Shutdown and whole protections (under-voltage, current-limit and over-temperature) into a tiny package. This device, available WLCSP 0.8x1.14-6 package and provides a very compact system solution external components and PCB area.
Active
40 Channels LED Controller for LCD Backlight
Features
- LED Open Detection
- Temperature Shutdown detection
- UVLO
General Description
The APE5033 is an integrated MOSFET and 40 channels LED controller for LCD backlight. It’s a highly accurate LED current 2% (100mA LED current) and wide input voltage range. The APE5033 has 40 Channels flexible PFM generators and independent 14 bits PFM brightness to control LED current for every channel. In addition; it has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5033 own LED current modulation method including PFM mode and DC mode. When applications have flicker frequency issues, using the DC mode method to eliminate flicker frequency problem. The APE5033 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. At the same time; the device using programmable via SPI interface. The APE5033 owns adaptive control mode for high efficiency. It’s build-in protection for safety; includes LED short, LED Open, temperature shutdown protection and UVLO. The APE5033 has an adaptive control mode method for high efficiency and reduce power loss. The APE5033 is available in QFN9x9-76 package.
Features
- Wide range input is 4.5V to 24V
- High Accurate LED Current 2% Typ. (ILED=100mA)
- LED current modulation method: PFM and DC mode
- 40 Channels flexible PFM generators and independent for 14 Bits PFM Brightness
- Synchronization with TV Frame – VSYNC / HSYNC / Digital PLL Integrated
- Digital Configurable DC/DC Feedback
- Protection For Safety Features
- LED Open Detection
- Temperature Shutdown detection
- UVLO
- PFM and DC Dimming Via SPI Interface
- Adaptive Control Mode (Only PFM mode) For High Efficiency
- Available In QFN9x9-76 Package
- One global high accurate 10 bit DAC which sets the LED current
- HDR mode 40 channels independent 10 bit DAC
General Description
The APE5033 is an integrated MOSFET and 40 channels LED controller for LCD backlight. It’s a highly accurate LED current 2% (100mA LED current) and wide input voltage range. The APE5033 has 40 Channels flexible PFM generators and independent 14 bits PFM brightness to control LED current for every channel. In addition; it has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5033 own LED current modulation method including PFM mode and DC mode. When applications have flicker frequency issues, using the DC mode method to eliminate flicker frequency problem. The APE5033 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. At the same time; the device using programmable via SPI interface. The APE5033 owns adaptive control mode for high efficiency. It’s build-in protection for safety; includes LED short, LED Open, temperature shutdown protection and UVLO. The APE5033 has an adaptive control mode method for high efficiency and reduce power loss. The APE5033 is available in QFN9x9-76 package.
Active
5V/1.37A VCSEL and IR-LED Driver with I2C Interface
Features
General Description
The APW7502 is a 5V/1.37A, 2MHz buck converter with a 7-bit current DAC to provide a well regulated current source for VCSEL and IR_LED applications. Through I2C interface, the start-up slew rate of the current source can be 8-segment adjustable and the regulated level can be adjusted too from 100mA to 1.37A in 10mA resolution. When the buck converter output is overloaded or short circuited, the device limits the current at a safety level to prevent catastrophic failure. The over-temperature protection shuts down the device when junction temperature reaches 150oC and will automatically resume operating when junction temperature cools down by 20oC. The cathode of the flash LED is referenced to GND, which improves thermal performance. The device is available in WLCSP1.42x1.42-9 package.
Features
- Wide Input Voltage from 2.7V to 5.5V
- Programmable LED Source Current up to 1.37A per 10mA/step
- Programmable LED Source Current Slew Rate 10mA/0.5µs to 10mA/64µs
- Bypass Mode for Standby Mode
- 40µA Operation Standby Current
- Programmable Ramp-up Time for IR-LED Current
- Support Dimming Frequency up to 5KHz
- 1MHz/2MHz Selectable Switching Frequency
- I2C Interface
- Short Circuit and Thermal Shutdown Protection
- Available in WLCSP1.42x1.42-9
- Lead Free Green Devices Available (RoHS Compliant)
General Description
The APW7502 is a 5V/1.37A, 2MHz buck converter with a 7-bit current DAC to provide a well regulated current source for VCSEL and IR_LED applications. Through I2C interface, the start-up slew rate of the current source can be 8-segment adjustable and the regulated level can be adjusted too from 100mA to 1.37A in 10mA resolution. When the buck converter output is overloaded or short circuited, the device limits the current at a safety level to prevent catastrophic failure. The over-temperature protection shuts down the device when junction temperature reaches 150oC and will automatically resume operating when junction temperature cools down by 20oC. The cathode of the flash LED is referenced to GND, which improves thermal performance. The device is available in WLCSP1.42x1.42-9 package.
Active
5V/1.37A VCSEL and IR-LED Driver with I2C Interface
Features
General Description
The APW7502A is a 5V/1.37A, 2MHz buck converter with a 7-bit current DAC to provide a well regulated current source for VCSEL and IR_LED applications. Through I2C interface, the start-up slew rate of the current source can be 8-segment adjustable and the regulated level can be adjusted too from 100mA to 1.37A in 10mA resolution. When the buck converter output is overloaded or short circuited, the device limits the current at a safety level to prevent catastrophic failure. The over-temperature protection shuts down the device when junction temperature reaches 150oC and will automatically resume operating when junction temperature cools down by 20oC. The cathode of the flash LED is referenced to GND, which improves thermal performance. The device is available in WLCSP1.42x1.42-9 package.
Features
- Wide Input Voltage from 2.7V to 5.5V
- Programmable LED Source Current up to 1.37A per 10mA/step
- Programmable LED Source Current Slew Rate 10mA/0.5µs to 10mA/64µs
- Bypass Mode for Standby Mode
- 40µA Operation Standby Current
- Programmable Ramp-up Time for IR-LED Current
- Support Dimming Frequency up to 5KHz
- 1MHz/2MHz Selectable Switching Frequency
- I2C Interface
- Short Circuit and Thermal Shutdown Protection
- Available in WLCSP1.42x1.42-9
- Lead Free Green Devices Available (RoHS Compliant)
General Description
The APW7502A is a 5V/1.37A, 2MHz buck converter with a 7-bit current DAC to provide a well regulated current source for VCSEL and IR_LED applications. Through I2C interface, the start-up slew rate of the current source can be 8-segment adjustable and the regulated level can be adjusted too from 100mA to 1.37A in 10mA resolution. When the buck converter output is overloaded or short circuited, the device limits the current at a safety level to prevent catastrophic failure. The over-temperature protection shuts down the device when junction temperature reaches 150oC and will automatically resume operating when junction temperature cools down by 20oC. The cathode of the flash LED is referenced to GND, which improves thermal performance. The device is available in WLCSP1.42x1.42-9 package.
Application
Driver IC series are used in desktops, notebooks, servers, industrial products, automobiles, home appliances, machine tools, robots...
Recently launched a digital control automatic detection IC to overcome many resonance issues caused by polarity and mechanical operation...
Provides complete power solutions for notebook computers with Intel and AMD CPUs
including DC/DC converters/controllers, linear regulators, load switches, and USB port solutions, with high efficiency and high-power density features in applications...
Provides complete power solutions for motherboards using Intel, AMD CPUs and DDR memory
including DC/DC converters/controllers, linear regulators, load switches, and USB port solutions...
We offer power management ICs, LED driver ICs, audio amplifiers, optical sensor ICs, and other components to meet the needs of TV and display applications.
All ICs have built-in protection devices against excessive temperature and overload current to prevent damage to other components under abnormal conditions.
Provides individual high-voltage DC/DC power solutions and highly integrated/customized PMICs for consumer, portable/IOT and automotive electronic products...
Offers low component count designs with low quiescent current, making it ideal for space-constrained PCBs and battery-powered applications.

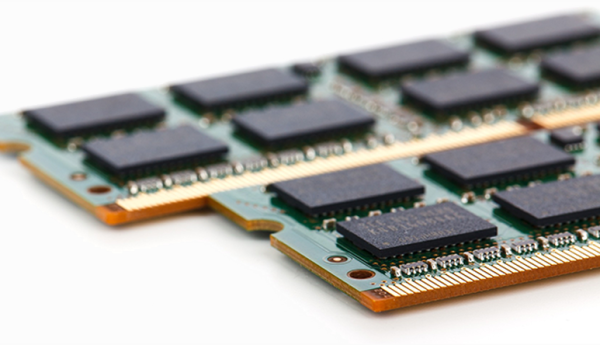

Provides various discrete or integrated power solutions for DDR memory.
ANPEC Electronics is the best choice to meet its high-performance and high-reliability requirements.
Provides solutions that can meet the standards of high energy efficiency energy density and reliability,
including diverse high-quality semiconductor solutions to customers with the best products, evaluation boards and reference designs for switch mode power supplies.
ANPEC Electronics offers a wide range of solutions for small cell base stations, passive optical networks, routers and TV cable boxes.
Product offers high efficiency, high density, and flexibility to help designers realize cost-effective and high-performance applications in a small form factor.
A graphics card is a hardware device with a core graphics processor to provide display information for a display device.
Provides a variety of power solutions and load switches to meet its high-performance computing and display needs with product application such as NVIDIA, AMD and Intel DG GPU...
In applications such as TVs and notebooks, in order to comply with the EnergyStar and TUV Evey Comfortable standards, ALS (Ambient Light Sensors), RGB Sensors, and Spectrum Sensors have been developed...
Provides complete solutions for solid-state drives (SSD) and servers with power management products with low power consumption, precise sensing, and high performance to support platforms developed for data centers.
Our innovative solution greatly improves data transmission and accuracy with high reliability...
ANPEC Electronics provides comprehensive power solutions for automotive electronics, supporting input voltage ranges from 3V to 42V and offering output current ranges from 1A to 6A...
About Us
Quality is ANPEC’s commitment to the society
ANPEC Electronics Corp., established in October 1997, is the first listed Power IC (power integrated circuit) design company in Taiwan. To meet the needs of the high-end market, ANPEC Electronics started its transformation in 2000, investing significantly to establish digital/hybrid IC design capabilities and related product lines, and becoming a power-based mix-signal IC supplier to provide customers with complete mix-signal IC solutions.
Continuous Improvement
Customer Satisfaction
Commitment in Quality
Full Participation
Accurate and Precise
DATE
2025/06/20
Company Information
2025-Q1 Online Investor Conference
ANPEC is invited to attend the Concord Securities Online Investor Conference.
DATE
2025/06/20
Company Information
2025 General Meeting of Shareholders
General Meeting of Shareholders
Time : 2025/06/23 9:00 A.M.
DATE
2025/06/16
Product Information
Discover the APE5035: 96 Channel LED Local Dimming Controller for LCD Backlight
The APE5035 integrates a MOSFET and a 96-channel LED controller for LCD backlighting. It provides highly accurate LED current control (2% with a 30mA LED current) and operates over a wide input voltage range.
DATE
2025/05/20
Company Information
The 2024 CommonWealth Magazine Top 2000 Companies
Ranked 495th in the manufacturing industryand 26th in the IC design industry among the 2024 CommonWealth Magazine Top 2000 Companies by CommonWealth Magazine.
DATE
2025/05/15
Social Engagement
【Employee Care】Vision Care Lecture - It's Simple to get Eyes Health
The eyes are the 'windows to the soul.' Having bright eyes allows you to enjoy a wonderful life.
DATE
2025/05/09
Financial Information
ANPEC Electronics has published the 2025 Q1 Consolidated Financial Statements, and the after-tax earnings per share was NT$2.60
ANPEC Electronics held a board meeting on May 9 and approved the 2025 Q1 financial statements.
DATE
2025/05/07
Social Engagement
【Social Care】Charity for Mother's Day
Let the disadvantaged groups also feel the warmth of Mother's Day and make all the children feel happy.
ANPEC ordered 298 boxes of Mother's Day cookies from Children Are Us Foundation. Total of 81,056 NT.
DATE
2025/04/15
Product Information
APW7720 PMIC features 7 Buck Converters, 6 LDOs, 2 LSs and Flexible System Settings via I2C and MTP
The APW7720 Power Management IC (PMIC) only requires one supply input, LI-ION Battery (3.0~4.3V) or 5.0V, generates seven PWM step-down converters, five low-noise LDOs, one RTC-dedicated LDO, and two enable logic control.
DATE
2025/03/31
Social Engagement
【Social Care】Joyful and Loving Children's Day
In this joyful and loving Children's Day, the Welfare Committee will distribute "Ten-Grain Rice Gift Boxes" from the "Children Are Us Foundation" to everyone. Each plump grain of rice represents heartfelt gratitude.
DATE
2025/02/21
Financial Information
ANPEC Electronics has published the 2024 Consolidated Financial Statements, and the after-tax earnings per share was NT$9.89
ANPEC Electronics held a board meeting on February 21 and approved the 2024 financial statements.
DATE
2025/02/14
Product Information
Discover the APW8895: a Synchronous NVDC Buck-Boost Switching Charger Controller
This versatile device seamlessly transitions between buck, buck-boost, and boost modes, catering to 2- to 4-cell Li-ion batteries.
DATE
2025/02/12
Social Engagement
【Social Care】Happy Lantern Festival in the Year of the Snake with Heartfelt Blessings
For this Lantern Festival, the ANPEC Welfare Committee has specially prepared cookie gift boxes from ‘Amazing Grace Deaf Bakery'.
DATE
2024/12/25
Company Information
2024 iSports Enterprise Certification
By the Sports Administration, Ministry of Education. In the future, we will uphold the sports spirit of excellence and continue to promote workplace health and employee sports culture.
DATE
2024/12/18
Product Information
ANPEC Collaborates with Valens Semiconductor to Deliver Optimized Automotive Power Solutions
We are thrilled to announce a collaboration between ANPEC and Valens to develop cutting-edge solutions for the automotive industry. The companies collaborated on integrating ANPEC's APW9304H, an AEC-Q100 qualified Power Management IC, known for its ultra-low EMI feature and flexible power sequencing, to Valens' VA7000 and VA6000 series product reference designs for ADAS, autonomous driving and in-car entertainment systems.
DATE
2024/12/18
Product Information
APW9304H is an Ultra-low EMI Triple Buck Converter and Designed for Automotive Applications (AEC-Q100)
Meet the APW9304H, an advanced triple buck converter designed for automotive excellence (AEC-Q100).
DATE
2024/11/20
Company Information
2024-Q3 Investor Conference
ANPEC is invited to attend the Concord Securities 2025 Investment Trends Forum.
DATE
2024/11/11
Financial Information
ANPEC Electronics has published the 2024 Q3 Consolidated Financial Statements, and the after-tax earnings per share was NT$7.51
ANPEC Electronics held a board meeting on November 11 and approved the 2024 Q3 financial statements.
DATE
2024/10/15
Product Information
The APX9351 Provides All the Circuitry for Sensor-less Speed Control of three-phase Brushless DC Motor
The APX9351 Provides All the Circuitry for Sensor-less Speed Control of three-phase Brushless DC Motor.
DATE
2024/08/09
Financial Information
ANPEC Electronics has published the 2024 Q2 Consolidated Financial Statements, and the after-tax earnings per share was NT$4.81
ANPEC Electronics held a board meeting on August 9 and approved the 2024 Q2 financial statements.
DATE
2024/07/11
Social Engagement
【Employee Care】Intestinal Health - Protecting Eyes and Keeping Good Body Shape at the Same Time
During weight loss, are you always unable to restrain your desire to eat? Have you tried countless time to lose weight but with little effect in return?
DATE
2024/07/04
Social Engagement
【Social Care】ANPEC Blood Donation - A Drop of Love, Infinite Warmth!
There are so many people in this world who need your help, let us become the guardians of life! One drop of blood extend the hope of life. A total of 117 bags of blood were donated in this event.
DATE
2024/06/27
Company Information
Among the 2023 Top 5000 Large Enterprises in Taiwan
Ranked 26th in the IC design industry among the 2023 Top 5000 Large Enterprises in Taiwan by China Credit Information Service Ltd.
DATE
2024/05/15
Company Information
The 2023 CommonWealth Magazine Top 2000 Companies
Ranked 509th in the manufacturing industry, 373nd by net income, and 387th by profitability among the 2023 CommonWealth Magazine Top 2000 Companies by CommonWealth Magazine.
DATE
2023/06/07
Company Information
